Entrepreneur

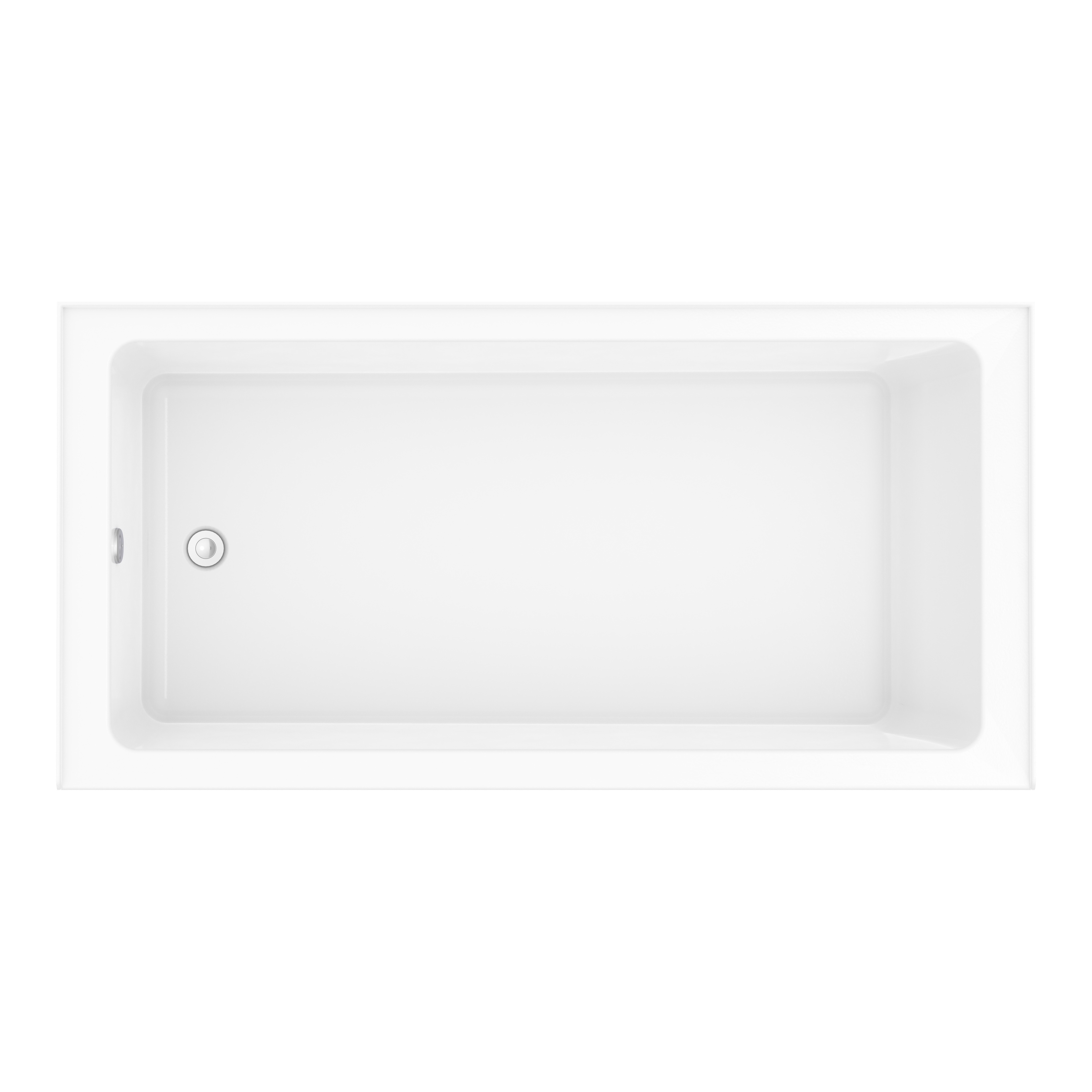

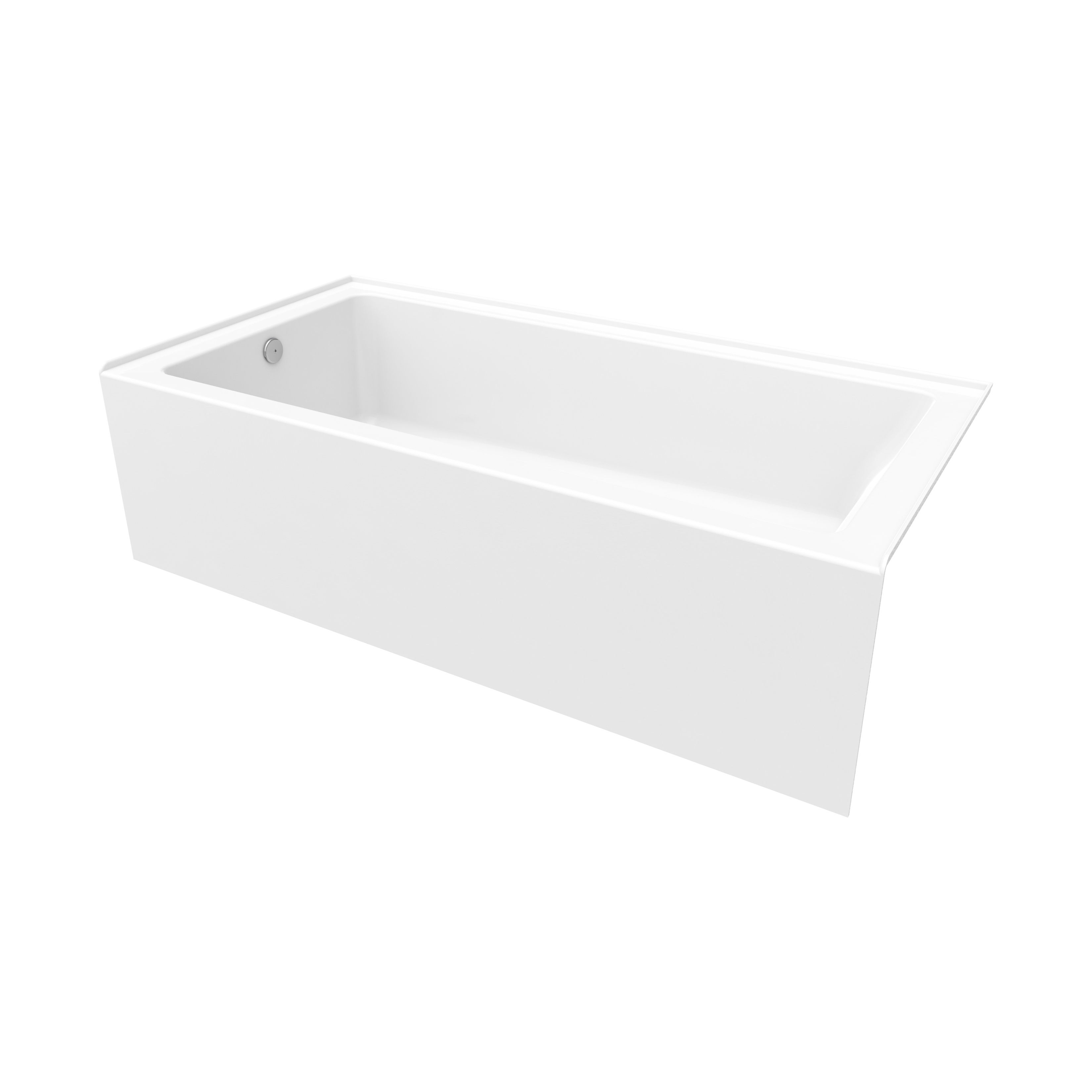

Pia 3672 IFS AFR Acrylic Alcove Left-Hand Drain Bathtub in White

71 3/4" x 35 7/8" x 19 3/4"
Internet SKU: 220508
Model number: 220508-000-001-101

Soaker - no system
A soaker bathtub without any massage system.

MSRP* USD$ 1,875.00

Product information

Key Benefits

  • Acrylic surface resistant to stains
  • High gloss finish resistant to dulling, scratching, and fading
  • Alcove installation
  • Classic rectangular shape
  • Leveling legs for an easy installation
  • Above-the-floor rough (AFR) so pipes can be routed without breaking ground or relocating the drain
  • Available in left-hand or right-hand drain configuration
  • Proudly manufactured in Canada
  • Warranty: 25 years

Attribute Set

    Characteristics

    • Adjustable leveling legs
    • Above-the-Floor Rough (AFR)
    • Integrated Tiling Flange

    Technical Specifications

    Installation Guides

      Technical Drawings

        Dimensions

        Bathing Well Width
        27 1/4"
        Bathing Well Length
        57 7/8"
        Depth
        16 3/4"
        Deep Sump Height
        12 3/8"
        Height
        19 3/4"
        Width
        35 7/8"
        Length
        71 3/4"
        Approximative Weight
        107 lb
        Skirt Height
        19 3/4"
        Shipping Height
        72 1/2"
        Shipping Length
        36 1/2"
        Shipping Width
        24"
